Introduction

The following test data and discussions are based on my first experience with a entirely new product without a large user base of background information to review. Given this situation, I anticipated the basic potential mounting/application issues. The amount of pressure required, as well as area coverage were of interest, and some exploratory tests were developed to address this.

Installation

The pad is very light weight with a satin like texture.  My initial concern was stability during the mounting process and that it would slide off the CPU or move off center. So my first application test idea was to stabilize the piece by putting a pinhead amount of paste on each corner to create enough friction so no movement was possible during installation.

Figure1. Pinhead of thermal compound on four corners to stabilize pad when mounting sink
Figure 2. IC Graphite applied and securely fixed in position
Figure3. Water Block mounted and ready for test

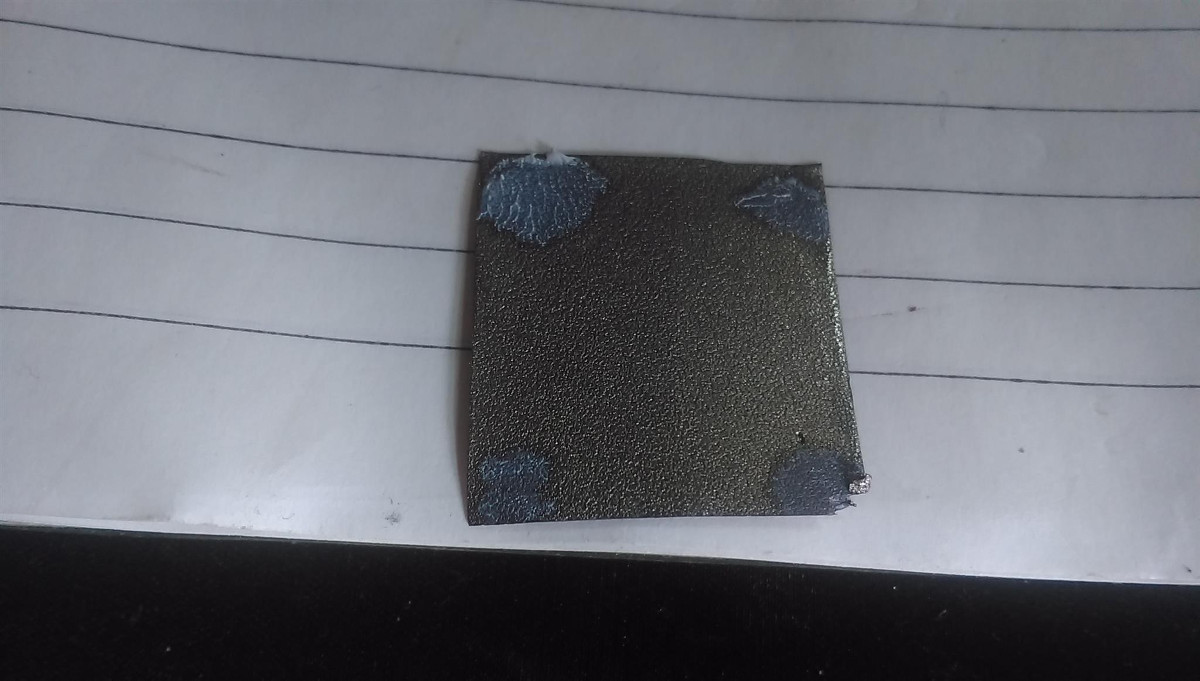

Figure 4. Pad after test Thermal Interface Material

Water Test Methodology

  • Prime 95 26.6 1344K with 7600K
  • Liquid Metal TIM on DIE of 7600K
  • Custom water cooling 22.2c ambient temperature
  • Score taken from the lowest temp.

All tests were done within a close proximity to each other to rule out ambient temp factors.

Table of Water Test Results

Thermal Interface Material 40/40 7600K

4.0/4.0 @ 1.25v

Gelid GC Extreme 40c
IC Graphite 40c
Figure 5.Screen Shot the Gelid GC Extreme Test
Figure 6. Screen shot of Thermal Pad Test

This is a nice result for an initial test.

Pressure and Area testing

Innovation Cooling suggested to me that at higher pressures, as high as 95 PSI, were required for peak performance. So, I developed the following test. Lacking a method of measuring the pressure I decided on sequential screw tightening as way of indicating the performance and pressure relationship. The tightening procedure was to rotate the screws till it was very lightly contacting the thermal pad take the temp data then follow with another full turn and take another data point. This followed through to 6 turns where I was at a maximum point and I could no longer turn the screws.

For the area requirement I used two different sized pads, a full 30X30 mm IHS sized thermal pad, then a 20X18 core sized pad, for about 60% less total pad area. This aspect of the test was to see if area reduction would reduce performance as well as significantly increasing PSI to levels where IC Graphite would perform at least somewhat near its peak pressure requirement.

Table of Combined Pressure and Area Tests

Intel Core i5 7600K @ 3.8 GHz Pad Covers Full IHS
Pad Size Screw Turns/ Pressure Temperature C
30X30 mm pad Full pad minimum pressure core 2 39
30X30 mm pad Full pad  1 turn pressure core 2 38
30X30 mm pad Full pad 2 turns pressure core 2 38
30X30 mm pad Full pad 3 turns pressure core 2 36
30X30 mm pad Full pad 4 turns pressure core 2 36
30X30 mm pad Full pad 5 turns pressure core 2 36
30X30 mm pad Full pad 6 turns pressure core 2 36
Intel Core i5 7600K @ 3.8 GHz Pad Sized to Core
Pad Size Screw Turns/ Pressure Temperature C
20x18mm pad Full pad minimum pressure core 2 39
20x18mm pad Full pad  1 turn pressure core 2 38
20x18mm pad Full pad 2 turns pressure core 2 38
20x18mm pad Full pad 3 turns pressure core 2 37
20x18mm pad Full pad 4 turns pressure core 2 37
20x18mm pad Full pad 5 turns pressure core 2 37
20x18mm pad Full pad 6 turns pressure core 2 36



mllrkllr88’s Pressure Tests

mllrkllr88 ran a pressure  test series similar to my own and was kind enough to share it with me, my test series were pretty much identical to mllrkllr88 although his were organized differently. In his series of tests starting with a new pad and 5 pads that were pre-compressed on a postal scale ranged 50-90 lbs. The assumption here was that stock sink pressure would be somewhere in that range and when that pressure was reached performance would improve thereafter.

The test series below show a 1-2 degree C drop in performance. My thought on the increase is that when pads reached the heat sinks natural tension point, the preflattened pads were so over compressed that they failed to fill voids in the contact area.

mllrkllr88’s test results below.

Compressed Thermal Pad Testing
Test Methodology

  • Intended to simulate the average user experience
  • Stock Intel IHS
  • Stock waterblock (not lapped)
  • Stock mounting system that does not allow adjustable socket pressure.



Test Setup

  • Liquid Metal on DIE of 7700K
  • Cinebench R15 load test, run within a minute of booting
  • 7700K @ 5200Mhz using 1.30v
  • Maximum temperature average of all 4 cores after bench has finished.



Table of Calibrated Pressure Test Results

Test Order Product Mount 1 (Degrees C) Mount 2 (Degrees C)
1 Graphite Pad – Original 58 58
2 Graphite Pad – Pressed 50 PSI 59 58
3 Graphite Pad – Pressed 60 PSI 58 59
4 Graphite Pad – Pressed 70 PSI 59 59
5 Graphite Pad – Pressed 80 PSI 60 59
6 Graphite Pad – Pressed 90 PSI 59 61

Conclusion

Test results here pretty much mirror other tests that I have done and bring out a significant point.  IC Graphite is pure 100% graphite mineral and fairly inert.  As such is it is a “Solid State” TIM and remarkably stable across a range of conditions, unlike liquid compounds.

Stable ranges of use:

  • Under long term use, perhaps lasting as long as the entire service life the electronic device
  •  Across a range of pressure
  •  Across a significant range of changes in area
  •  Across an extreme temperature range capability of -200 to 400C
  •  With no break in period of note
  •  Near identical temperatures between mounts.

Anecdotally, I understand that my initial evaluation testing counterparts in the LN2 competition end of things have had good results. They solve the issue of compound cracking, as well as breaking some world records with the thermal pad tested direct die on a GPU. CPU were results somewhat less.

Application is as previously noted could not be simpler, a pinhead amount of paste applied in a couple of the corners should resolve any stability problems should they occur.

Many thanks to Innovation Cooling for letting me be  the first to test and review IC Graphite.
